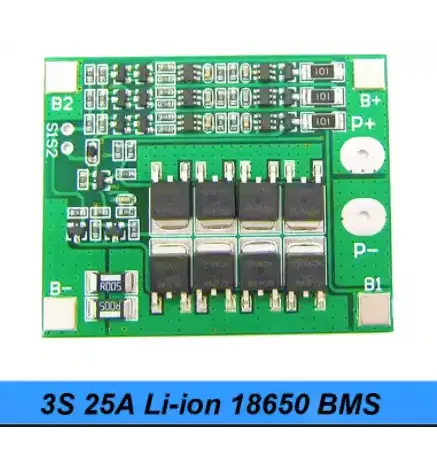

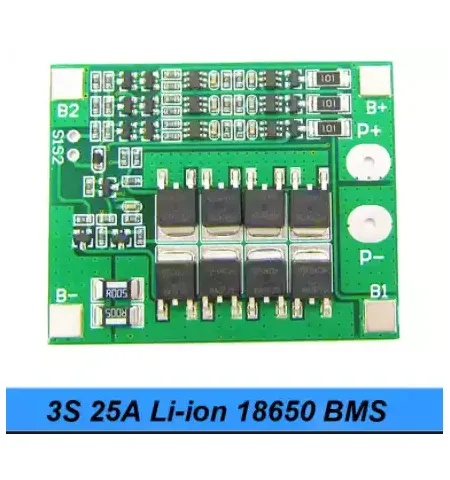

3S 25A Lithium Li-ion Battery Charger Protection PCB BMS Board
Description:
Note The item is Balanced version
Enhanced version: for starting current below 80A, power 130W below the drill.(Not balanced function)
Balanced version: suitable for starting current below 80A, power 170W below the drill.(with balance)
3S 12.6V 25A lithium battery protection board
Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)
Product Size: 42 * 55 * 3.4mm ( Enhanced Version), 42 * 60 * 3.4mm (Balanced version)
Product weight: 8.8g (enhanced version), 9.8g (balanced version)
Charging voltage: 12.6V - 13.6V
Continuous discharge current (upper limit): 40A (if the cooling environment is not good,
please reduce the load current use)
Continuous charge current (upper limit): 20A
Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary
18650 can not start the drill!!).

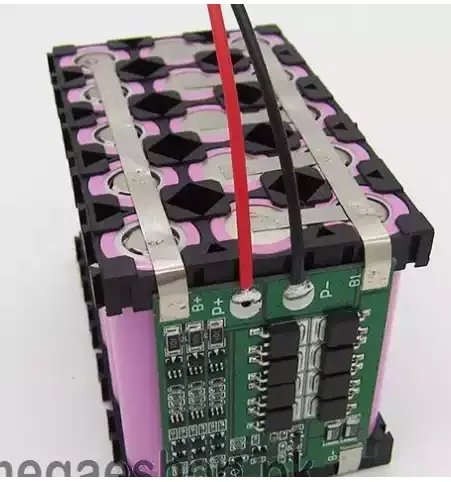

Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor
(withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals
to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 3 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same,
please fill each battery separately and then use in series.
The Discharge test, the voltage drop faster battery that group is poor battery.
For some of the poor basis of electronic customers to explain: balanced charge is only auxiliary functions,
try not to put a good battery and poor battery mixed together! 3 sets of battery capacity / resistance closer to the better!
(2 good battery +1 Poor battery use effect = 3 poor battery use effect).
