Buck Module DC-DC Step Down Converter Buck Boost Converter Step Up Module Two Module Set

Write a review
Save 8%
203827
रु 498.00
रु 540.00
You save: रु 42.00
Availability: 10 item(s)
7 days
Reward points: 5 points
+ −
Add to wish list Compare
Hamro Deal
Ask a question
  • Payment options
  • Our advantages
    • — Cash on Delivery
    • — IME Pay Online Payment
    • — Khalti Wallet Online Payment
    • — Connect IPS Online Payment
    • — Credit Card / Debit Card Online Payment
    • — SMS notification
    • — Return : 7 days
    • — Different payment methods
    • — Best price
  • Technical parameters
  • # BOOST CONVERTER
  • Model Specification:Automatic Buck module
  • Module Properties:Non- isolated boost (BOOST)
  • Rectification:Non- Synchronous Rectification
  • Input Range:3.8V- 32V
  • Output Range:1.25V-35V
  • Input Current:3A ( max ),no-load 18mA (5V input , 8V output, no-load is less than 18mA. Higher the voltage , the greater the load current . )
  • Conversion efficiency:<94% ( greater the pressure, the lower the efficiency)
  • Switching frequency:400KHz
  • Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )
  • Load Regulation:± 0.5%
  • Voltage Regulation:± 0.5%
  • Operating Temperature:-40 -+85
  • # BUCK MODULE

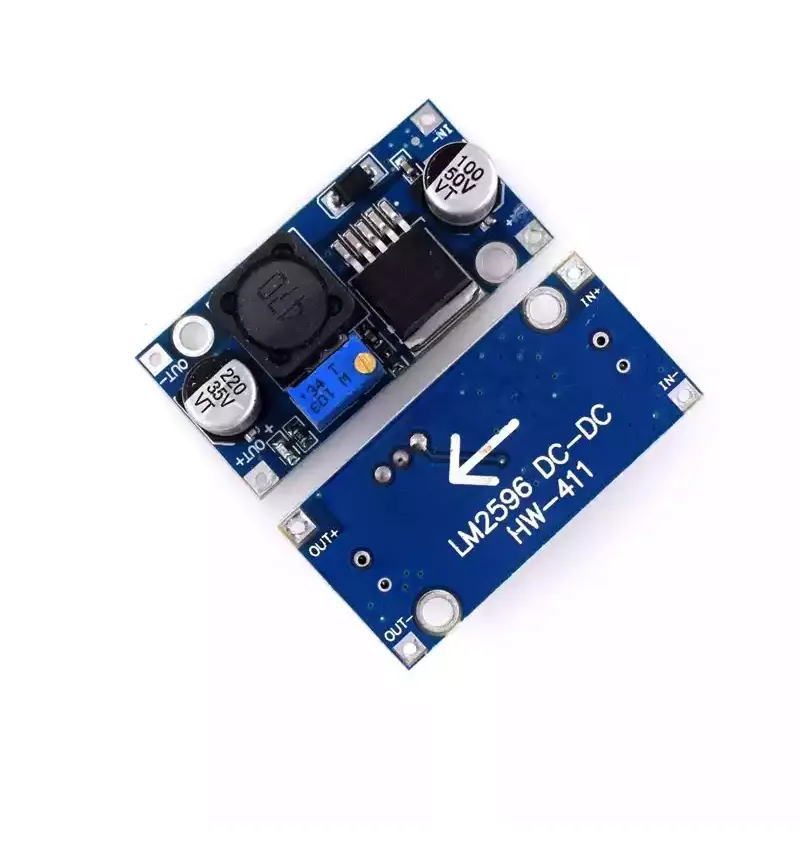

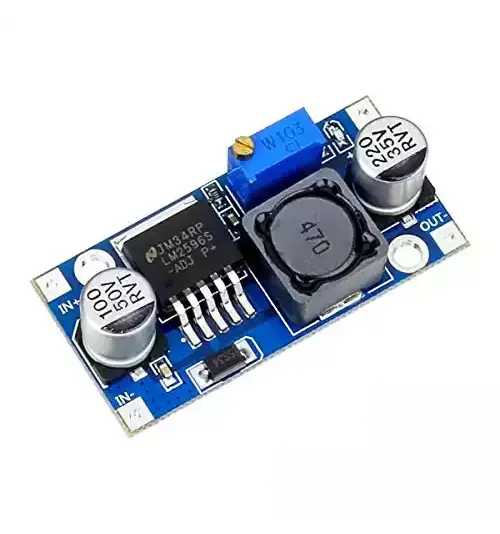

  • Name : LM2596 DC-DC Buck module
  • Input voltage :4V ~ 35V
  • The output voltage : 1.23V ~ 30V
  • Output Current :3A( Max)
  • Conversion efficiency:92%( MAX )
  • Output ripple: <30mV
  • Switching frequency: 150KHz
  • Working temperature: -forty Five~ +85
  • Size :43mm * 21mm * 14mm(Long*Width*Hight)
