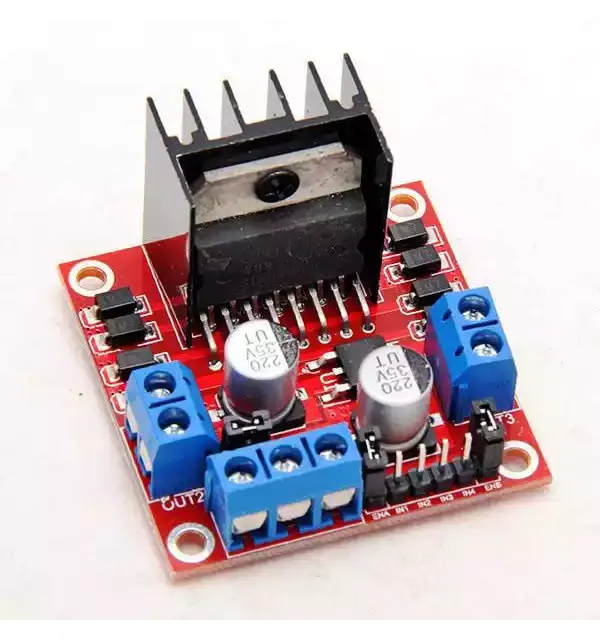

L298 Motor Driver Module

Write a review

CODE: 203916

Save 34%

Return period: 7 days

Driver: L298N Dual H Bridge DC Motor Driver IC Driven part of the terminal supply area Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: +7 V ~ +35 V Driven part of the peak current Io: 2A The logical part of the terminal supply area Vss: +5 V ~ +7 V (can...

रु 558.00

रु 850.00

You save: रु 292.00

In stock

+ −

Vendor: Hamro Deal

Ask a question

Payment options
Our advantages

- — Cash on Delivery
- — IME Pay Online Payment
- — Khalti Wallet Online Payment
- — Connect IPS Online Payment
- — Credit Card / Debit Card Online Payment
- — SMS notification
- — Return : 7 days
- — Different payment methods
- — Best price

Description
Reviews

Driver: L298N Dual H Bridge DC Motor Driver IC
Driven part of the terminal supply area Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: +7 V ~ +35 V
Driven part of the peak current Io: 2A
The logical part of the terminal supply area Vss: +5 V ~ +7 V (can take power within the board +5 V)
The logical part of the operating current range: 0 ~ 36mA
Control signal input voltage range:
Low:-0.3V ? Vin ? 1.5V
High: 2.3V ? Vin ? Vss
Enable signal input voltage range:
Low: -0.3 ? Vin ? 1.5V (control signal is invalid)
High: 2.3V ? Vin ? Vss (control signal active)
Maximum power consumption: 20W (when the temperature T = 75 ?)
Storage temperature: -25 ? ~ +130 ?

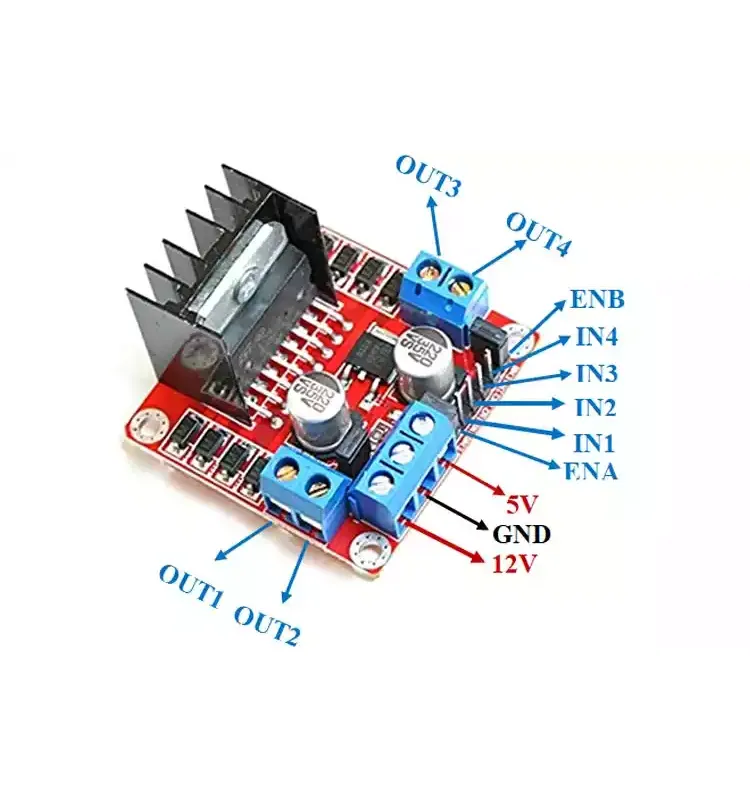

Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
Driver Board Size: 55mm * 60mm * 30mm
Drive plate Weight: 33g
