Brand
| xLab
|
Product Name

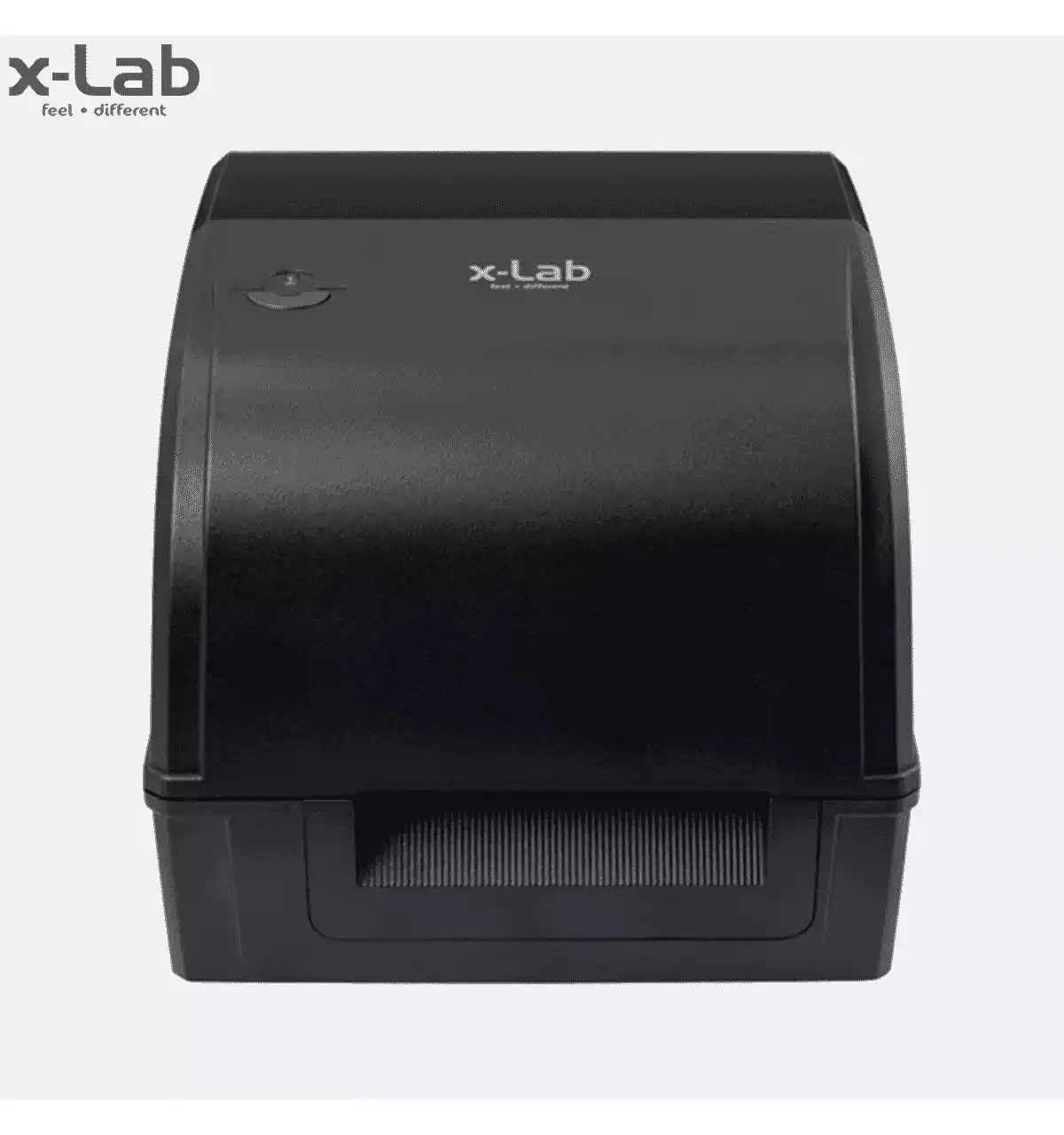

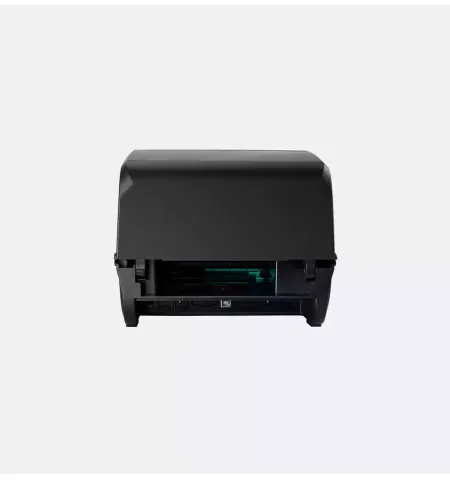

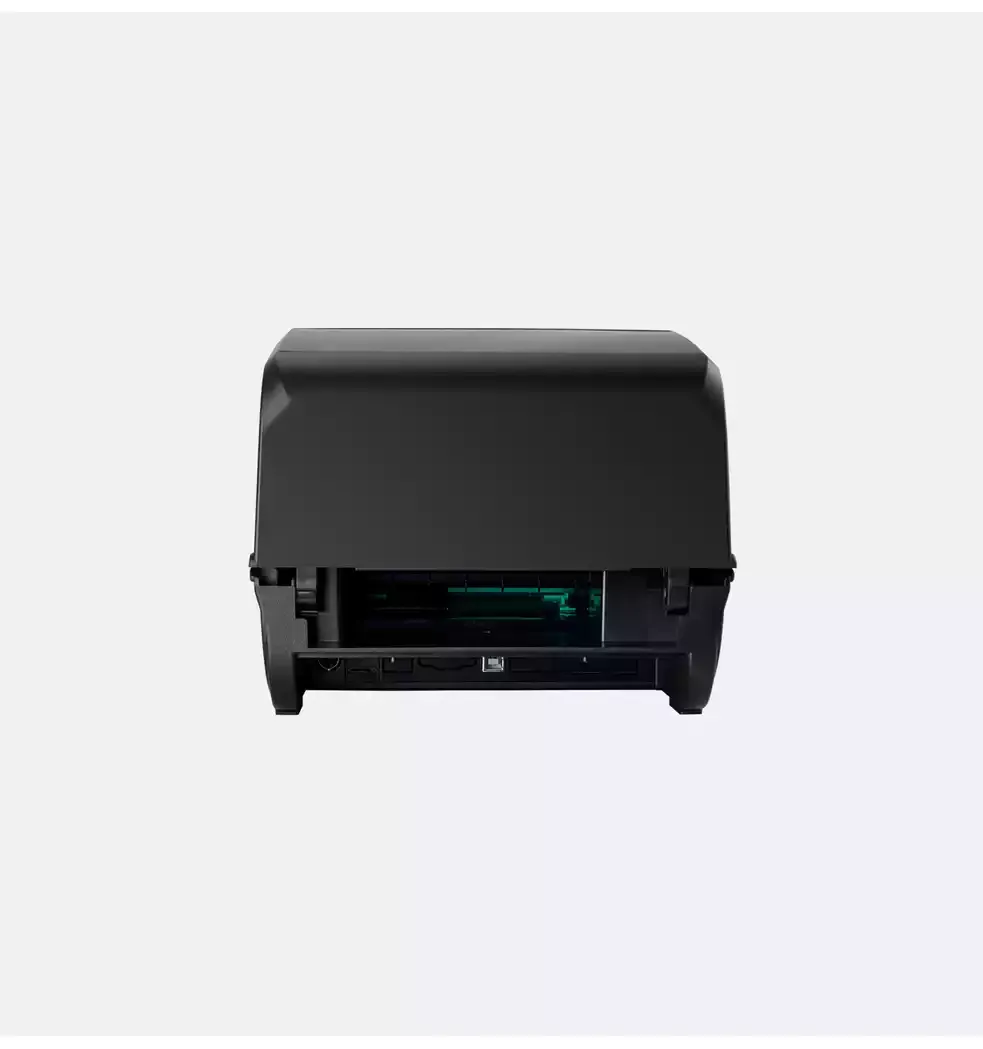

| xLab XBLP-426T Thermal Barcode Label & POS Printer
|
Model
| XBLP-426T
|
Country of Origin
| USA
|
Ribbon Capacity
| Mox.300m
|
Processor
| 32-bit CPU
|
Interface
| USB + LAN
|
Dimensions
| Weight Reliability Print head life Software Driver SDK 299 mm (D) x 235 mm (W) x 198.3 mm (H)
|
1D Barcode
| Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codobar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, Chino POST
|
Media width
| 25.4-118mm (1.0”-4.6”)
|
Media thickness
| 0.06-0.254 mm (2.36-10mil)
|
Media core diameter
| 25.4 76.2 mm (1 "- 3")
|
Label roll capacity
| 127 mm (5") OD (External Diameter)
|
Ribbon width
| 110 mm
|
Ribbon core inner diameter
| 25.4 mm (1")
|
Memory Interface
| 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb
|
Sensors
| Standard version: USB Optional :Serial/Lon/WIFI/BluetootIVIF card Or Gap sensor ® Cover opening sensor ® Black mark sensor ® Ribbon sensor
|
Internal fonts
| 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
|
Rotation
| 0°, 90°, 180°, 270°
|
Print head life
| 30 km
|
Factory Options
| Built-in Ethernet server (10/100 Mbps); RS-232C (2400-115200 bps) communication interface; Cutter, Peeling machine, Bluetooth module, Win module
|
Dealer Options
| 0 External paper roll holder and 1 "paper roll Extension board for external paper roll holder
|
Operation
| 5 - 40°C(41-104°F), Humidity: 25 - 85% non-condensing
|
Print
|
Print Speed
| 127mm (5") / s Max.
|
Media Types
| Continuous, gap, black mark, fan-fold and punched hole
|
Environment
|
Environment
| -40 - 60°C(-40-140°F), Humidity:10 90% non-condensing
|
Printer Drivers
|
Driver
| Windows, Linux, Mac
|
Printing
|
Resolutions
| 203 dpi
|
Print Method
| Thermal Transfer/Direct Thermal
|
Print Width
| 104mm (4.09 )
|
Max print Length
| 1778 mm (70")
|
Barcode Functions
|
2D Barcode
| PDF-417, Maxicode, DataMotrix, QR code, Aztec
|
Emulation
|
Emulation
| TSPL, EPL, ZPL, DPL
|
Dimensions
|
Label length
| 10 -1778 mm(0.39" - 70" )
|
Weight
|
Product Weight
| 2.55 kg
|
